2.2" Dome Neodymium Tweeter with Aluminum Body 30 Watts 1" Titanium 4-Ohm Vc

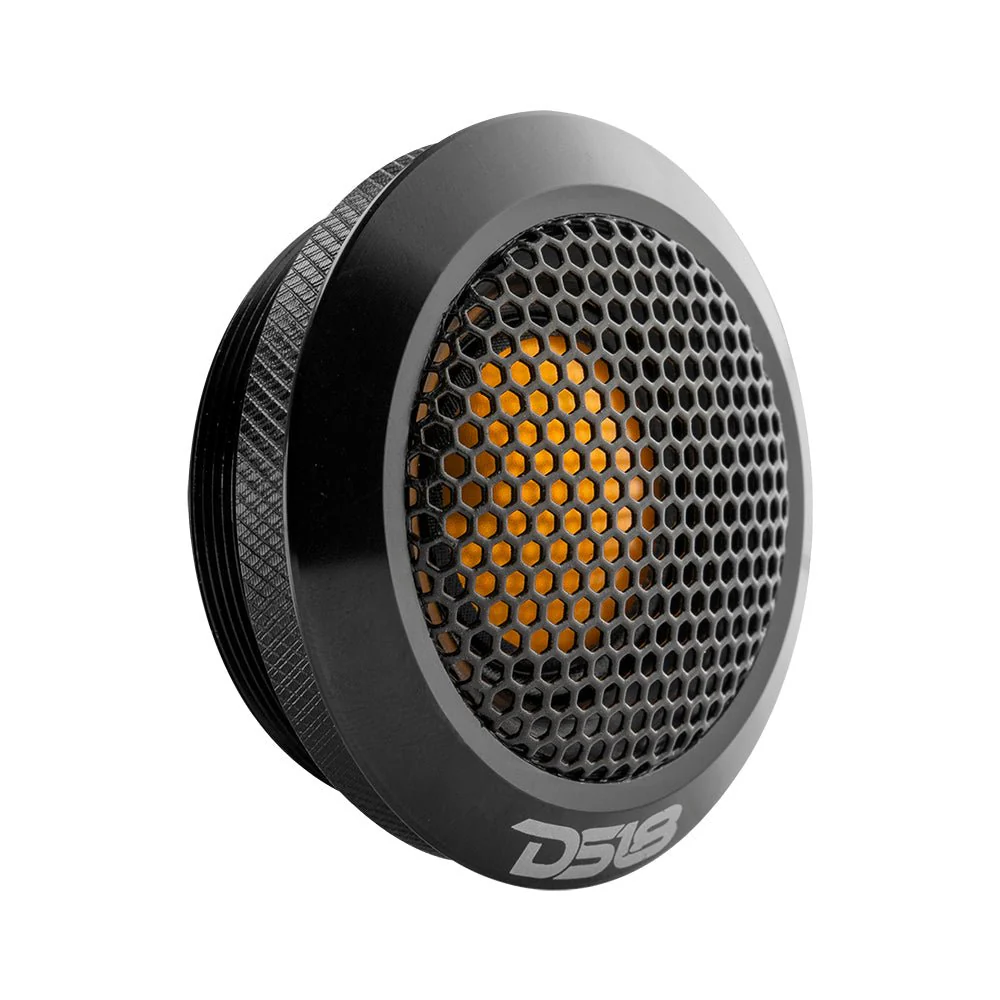

DS18 DTX 2.2" Sound Quality Titanium Dome Tweeter with Aluminum Body
Amazing option for those wanting competition level tweeters that not only sound great, but have that intense volume that DS18's tweeters are known around the world for.
This tweeter maximizes and emphasizes volume over all with high power and high frequency notes. The high quality design gives it a unique look that demands attention from everyone around it. This 2.2 inch tweeter can handle 15w AES and 60w Peak power so it will be sure to deliver all the high range frequencies you are looking for.
Highlights
-
2.2 inch tweeter design is made to bring crisp and bright high frequencies to maximum loudness for your system.
-
Small design makes it easy to mount and even easier to pair together for great looks and easy installations.
-
Power rating of 15w AES and 60 peak which will allow the high frequencies to play with authority.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 2.2” / 58 mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 15 Watts |
| Program Power Handling | 30 Watts |
| Peak Power Handling | 60 Watts |
| Sensitivity (1w/1m) | 95.2 dB |
| Frequency Response | 900 Hz - 20 KHz |
| Recommended Hi Pass Crossover | 3.8 KHz |
| BODY | FEATURES | |
| Pair or Single | Pair |
| Body Material | Aluminum |
| Body Color | Silver |
| MOTOR | |
| Voice Coil Diameter | 1” / 25.4 mm |
| Voice Coil Former Material | KVC |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| MEASUREMENTS | |
| Overall Diameter | 2.28”/ 58 mm |
| Overall Depth | 1”/ 26 mm |
| Front Mount Baffle Cutout | 1.85” / 47 mm |
| Mounting Depth | 0.65” / 16.5 mm |
